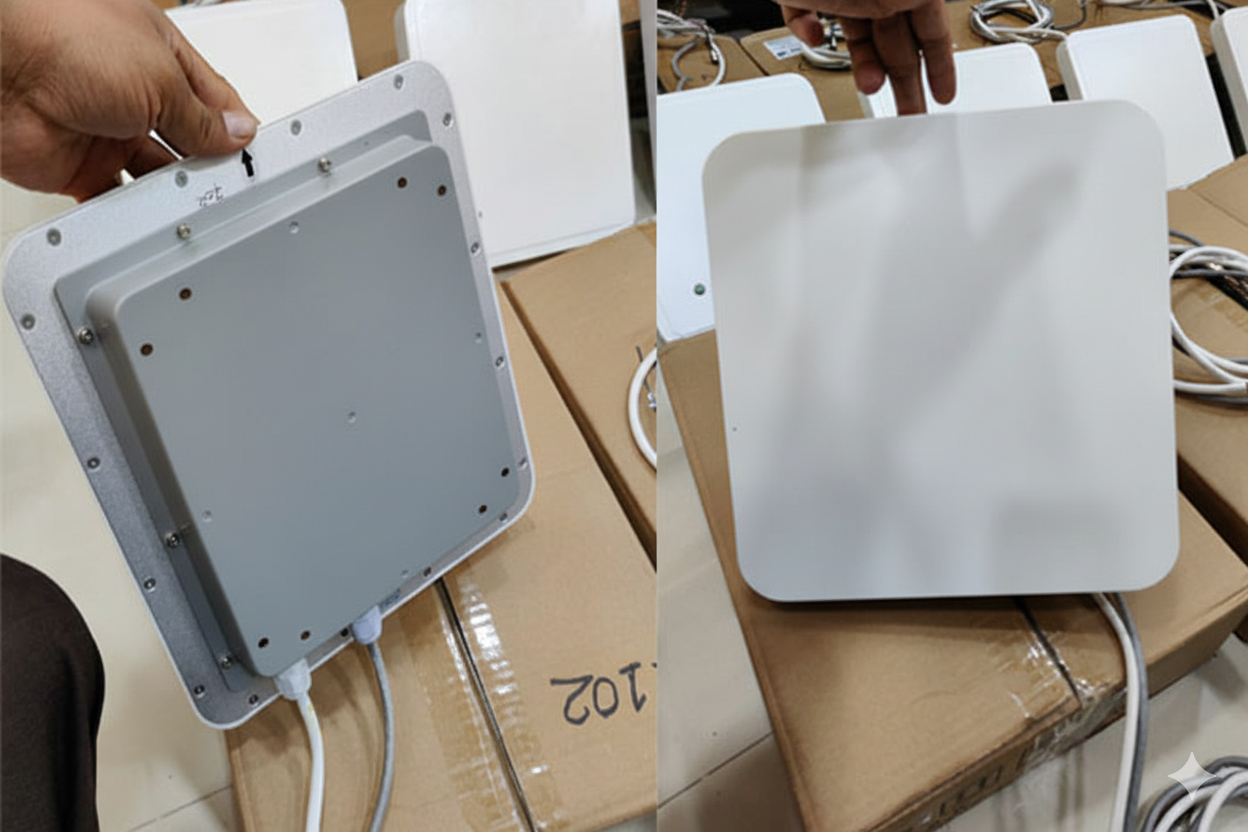

RFID Reader Used For Weighbridge Automation, UHF Long Range and HF Short Range Reader.
| Specification | Value |
|---|---|
| Operating Frequency | 862 to 955 MHz |
| Power Supply | 9 to 12 V DC |
| Transmitting Power | Upto 30 dbm, Software Adjustable |
| Read Range * | Up to 4 meter |
| Antenna | Internal |
| Communication, Interface | RS232 / RS485 / Wigand |
| Supported, Transponders | ISO 18000-6B / 18000-6C (EPC Gen 2) |
| Read Performance | 25 Tags Per Second |
| Weight | 2.75 Kg Approx |
| Dimensions | 450 X 450 X 60 mm |
| Color | White |
| Specification | Value |
|---|---|
| Operating Frequency | 13.56 MHz |
| Power Supply | 5 V DC |
| Transmitting Power | 15 to 500 mW / Software Adjustable |
| Read Range * | 100 mm |
| Antenna | Internal |
| Communication, Interface | Ethernet |
| Supported, Transponders | ISO 15693 / ISO 14443A |
| Weight | 100 gm |
| Dimensions | 100 X 80 X 25 mm |
